Wearable posture sensor module

Concept design for a wearable module that monitors upper-body angle and speed, within an IID Lab research and development project with LG Electronics.

A round, pale blue sensor module with a glowing ring on top and rows of speaker holes
Year

2024

With

LG Electronics, through IID Lab at UNIST

Scope

Product design, research and development, and the strap attachment system

A small module on a strap, tracking the angle and speed of the upper body.

Views

Top view of the sensor module showing the ring and speaker holes
From above: the ring and the speaker holes.

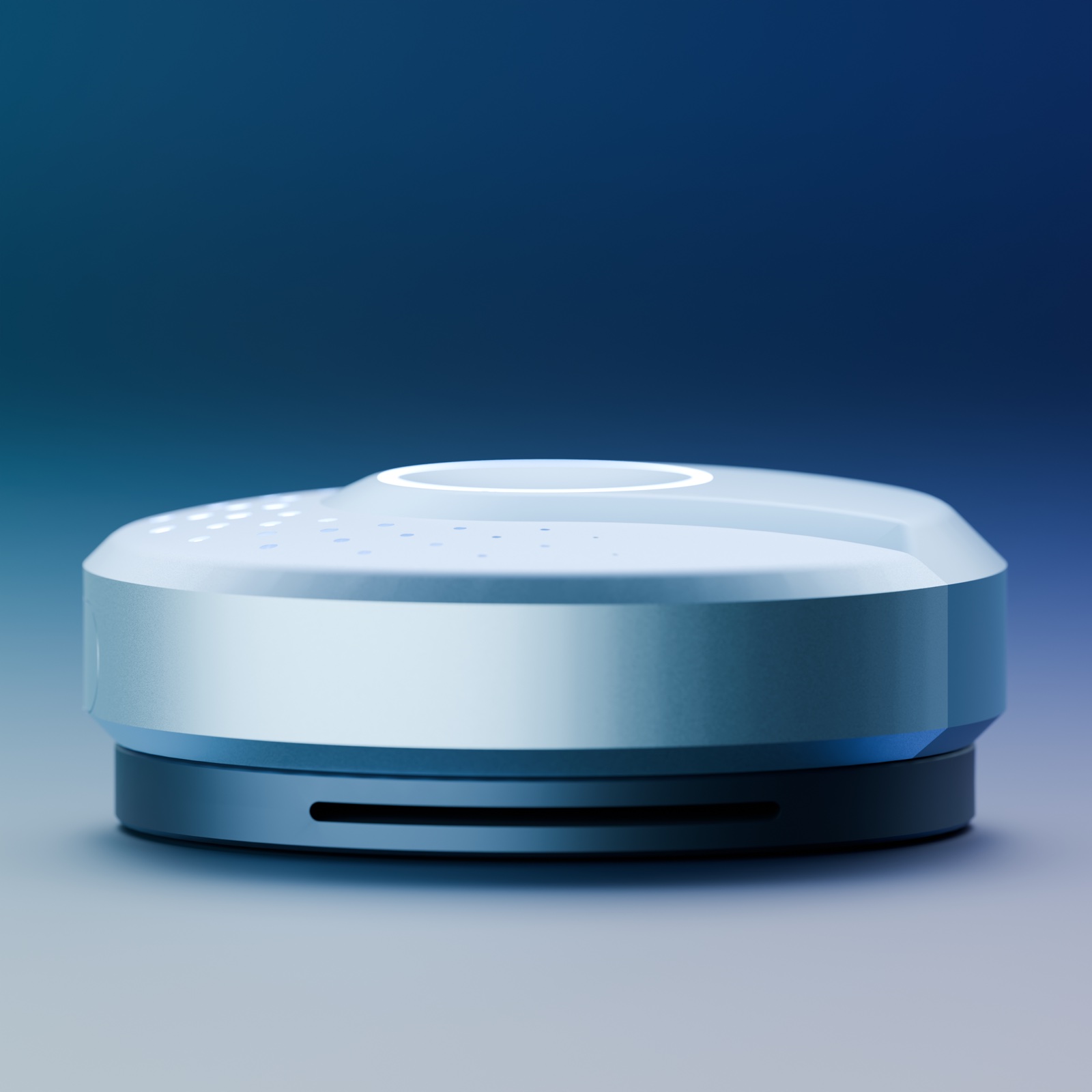

Side view of the sensor module
From the side.

Construction

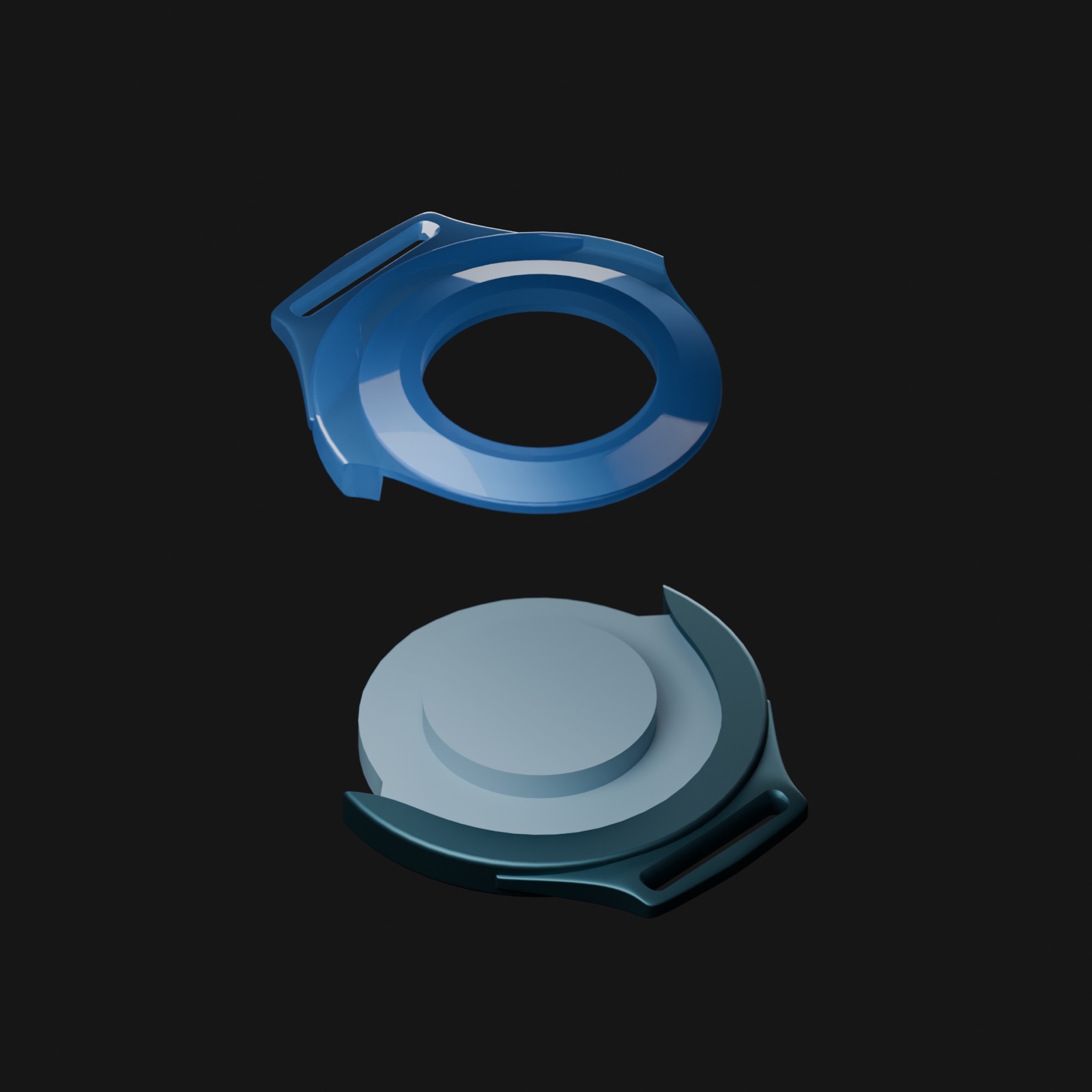

Exploded view of the sensor module: a blue ring-shaped top cover lifted above the base
Exploded view: the top cover lifted above the base.

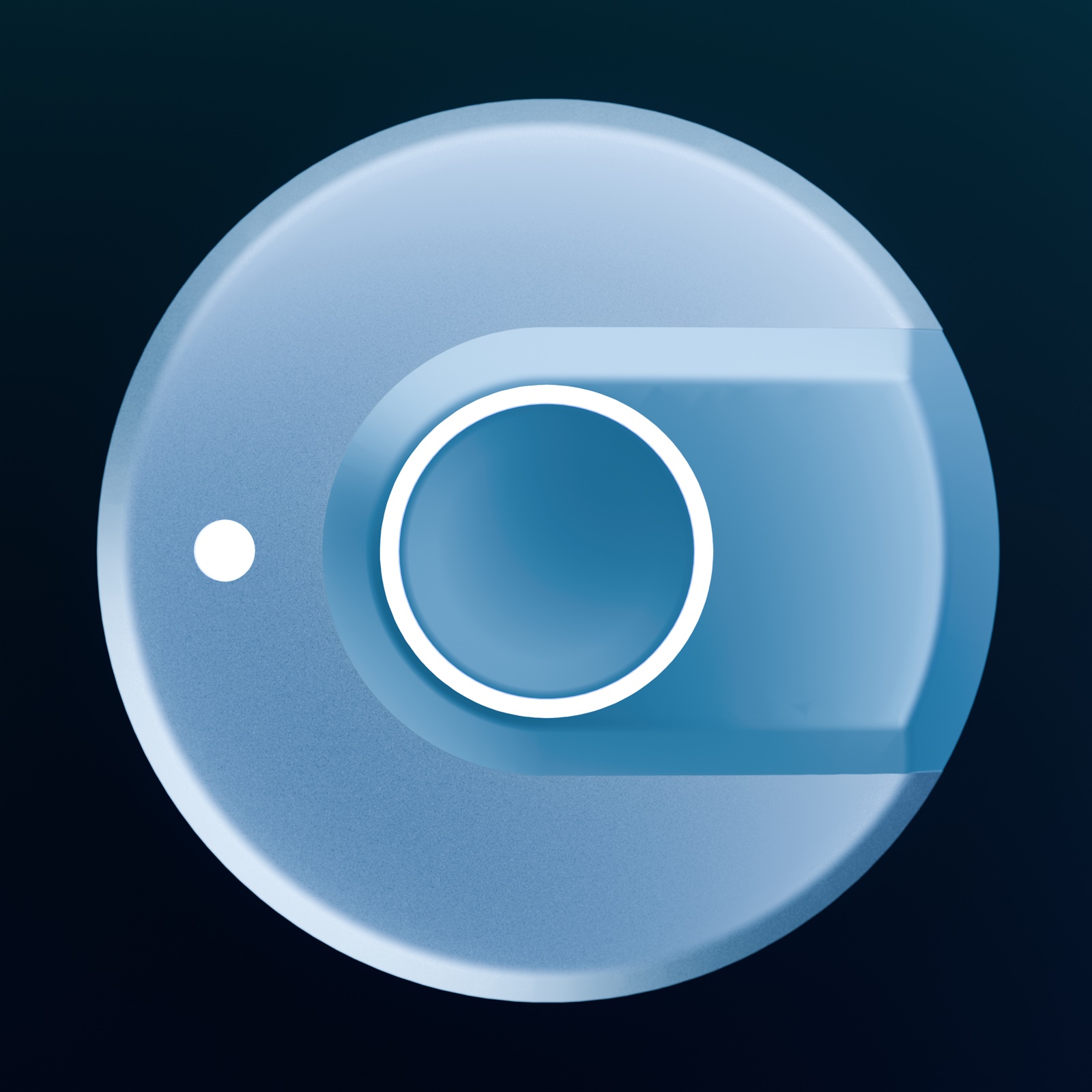

A manufacturing-oriented variant of the module from above
A variant shaped for manufacturing.

Details

Client
LG Electronics
Lab
IID Lab, UNIST
